5.5m natural gas furnace with slide door installed successfully
May.18,2018

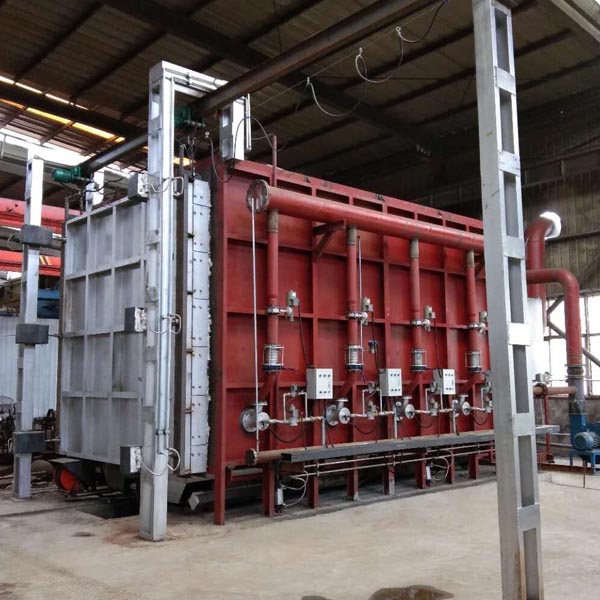

In May 2018, 5.5 m gas furnace with side door is installed and debugged smoothly, this furnace belongs to batch furnace, which is mainly used for heating metal artifacts, for annealing heat treatment.
The design of slide furnace door is designed to consider the restriction of the height on the crane at the customer factory and the height of the factory, and the slide door can effectively reduce the height restriction.
This type of batch furnace mainly composed of furnace body, furnace lining, furnace door and the furnace door opening device, sealing device, trolley, combustion system, gas pipeline, air pipeline, exhaust pipeline, sealing device and electrical and automation system and components.
Main technical parameters of this furnace:
|
No. |
Name |
Specifications |
|
1 |
Working zone size of furnace |
5500× 2500× 2500 mm（L× W× H） |
|
2 |
Loading weight |
100t |
|
3 |
External temperature of furnace |
Furnace surface temperature increase≤45℃；Furnace roof temperature increase≤50℃（+Room temp） |
|
4 |
Temperature control precision |
≤±3℃ |
|
5 |
Furnace uniformity |
±10℃ |
|
6 |
Rated temperature（℃） |
1100℃ |
|
7 |
Temperature control zones |
4 zones |
|
8 |
thermocouple |
K type |
|
9 |
Empty furnace temp increase time |
≤2.5h |
|
10 |
Fuel |
Natural gas （Calorific value of fuel：～8500×4.18KJ/m3； Gas pressure before the burner：8--10kPa） |
|
11 |
Burner installation method. |
Installed on side walls, staggered arrangement. |
|
12 |
Smoke exhaust temperature display |
Over temperature alarm |
|
13 |
temperature control |
Set the temperature and holding automatically. |
|
14 |
furnace pressure display |
overpressure alarm |
|
15 |
Furnace door open method |
elevator lifting，Speed 6～8m/min |
|
16 |
Trolley waling method and speed |
Blunt gear transmission.，6～8m/min |
|
17 |
Temperature record |
furnace temperature is measured by thermocouple. |
|
18 |
Rated voltage |
380V、3p、50Hz |
-
