Tianli electric resistance heating furnace is a heat-treatment equipment with enclosed insulated chamber. It converts electric energy into heat via resistance heating elements. Free of combustion exhaust, it delivers clean operation and high-precision temperature control, making it widely adopted for precision heat-treatment processes.
With Tianli’s manufacturing expertise since 2003 and more than 200 national patents, steel structure, refractory lining, heating elements, hot-air circulation system and full electrical control system are independently engineered and produced. Our furnaces serve military, aerospace, nuclear power, pressure-vessel, boiler and hoisting-machinery sectors. Units can work standalone or form automatic production lines. Featuring easy installation, convenient transportation and low operating-maintenance cost, our resistance furnaces have been exported worldwide. Since 2015, we have supplied complete solutions to Russia, UAE (Dubai), Thailand, Vietnam, Oman and other countries.
Premium resistance heating elements provide heat without combustion by-products for clean workshop environment. Multi-zone closed-loop PID temperature control offers fast response and high precision, accurately executing full heating-soaking-cooling curves for components requiring strict thermal conditions.

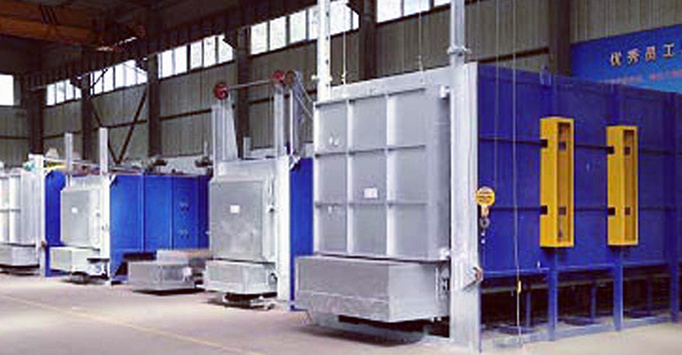

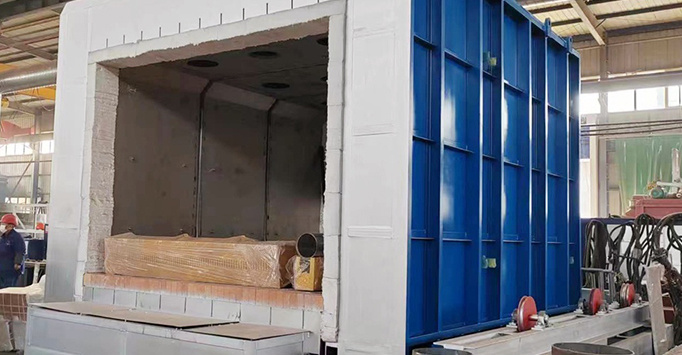

Available in bogie-hearth, box-type and other configurations. Bogie-type model adopts motor-driven rail trolley. Heavy workpieces are loaded outside the furnace, and the trolley moves in and out automatically for easy material handling, ideal for large-size, heavy-weight castings and forgings. Modular design enables easy installation, transportation and relocation.
Multi-ayer composite refractory and insulation lining minimize heat loss and heat storage. Optimized hot-air circulation ensures uniform temperature field inside chamber, securing consistent batch heat-treatment quality while lowering energy consumption.
Complete in-house electrical control system with key industrial-grade components from Schneider Electric, ABB, Siemens, Delta and Yudian(Xiamen). - HMI touch-screen operation; multiple stored recipes for annealing, normalizing, tempering and aging. One-click automatic full-process execution. - Full safety interlocks: overtemperature protection, thermocouple break alarm, furnace-door & trolley limit switches, overload protection and emergency-stop circuit. - Automatic logging of temperature curves, runtime data and fault records. Data export function meets traceability standards for military and nuclear-industry projects. - Supports multi-furnace networking with upper-computer monitoring for centralized plant management.
Furnace dimension, charge capacity and working temperature can be customized according to workpiece specification and plant layout. Supported by long-term cooperation with research institutes and universities, Tianli provides professional process guidance for special materials. Turn-key delivery, reliable after-sales service and long-term spare-part supply are available for domestic and overseas projects.
|
Model |
Rated Power (Kw) |
Rated Temperature (℃) |
Theoretical Load Capacity (Kg) |
Working Dimensions (LWH)(mm) |
|
RT2-45-6 |
45 |
650 |
1,000 |
1100×550×450 |
|
RT2-90-6 |
90 |
650 |
3,000 |
1800×800×750 |
|
RT2-210-6 |
210 |
650 |
12,000 |
3000×1350×950 |
|
RT2-215-6 |
215 |
650 |
5,000 |
2000×1400×1800 |
|
RT2-450-6 |
450 |
650 |
20,000 |
5500×2150×1700 |
|
RT2-950-6 |
950 |
650 |
30,000 |
8000×3500×2000 |
|
RT2-90-9 |
90 |
950 |
1,500 |
1500×700×600 |
|
RT2-105-9 |
105 |
950 |
2,500 |
1500×800×750 |
|
RT2-320-9 |
320 |
950 |
12,000 |
3000×1350×1300 |
|
RT2-420-9 |
420 |
950 |
15,000 |
4100×1850×1000 |
|
RT2-560-9 |
560 |
950 |
25,000 |
10000×1000×2500 |
|
RT2-800-9 |
800 |
950 |
30,000 |
5000×4000×450 |
|
RT2-120-12 |
120 |
1200 |
2,500 |
1500×800×600 |
|
RT2-210-12 |
210 |
1200 |
5,000 |
2100×1050×750 |
|
RT2-560-12 |
560 |
1200 |
30,000 |
3200×2000×1500 |
