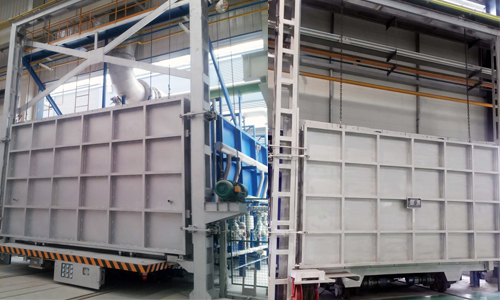

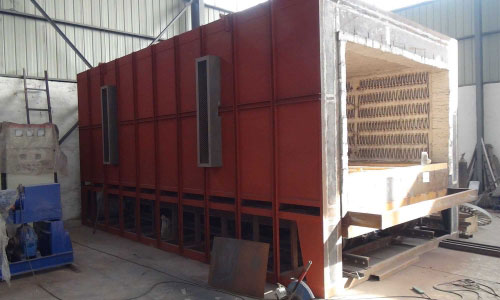

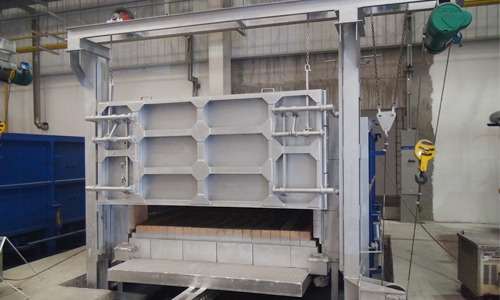

High temperature resistant bogie hearth furnace

  • Processing capacity:1000-150,000kG
  • Rated temperature:900-1250 ℃
  • Application:forging parts, casted parts,pressure vessel,Train railway,special steel plate,shaft,rotary parts,centrifugal fan impeller
[email protected]

1. Introduction

High temperature resistant bogie hearth furnace is the upgraded product to replace the original annealing furnace with brick structure, which is mainly used for heat treatment of key pars in various industries, such as cars, rail transportation, aerospace, it is can also be applied to the annealing of Post welding heat treatment (PWHT), castings, forgings etc.

Sometimes, when the temperature is higher than 1200℃,we will use fiber containing zirconium to resist high temperature and ensure the furnace uniformity.

2. Structures

Consists of furnace shell, furnace lining, furnace door and furnace door lifting device, heating element, trolley and trolley driving device, sealing mechanism, electric control system and so on.

3. Features

1. Convenient maintenance

2. Good noise reduction function

3. Seismic resistance performance is good.

4. The sealing between trolley and furnace shell can be fixed sand sealing, flexible sand sealing, moved sand sealing, Labyrinth sealing, Motor-driven push-rod type sealing, and Cylinder pressure tight sealing and so on

5. Electricity and natural gas both can be the fuel .While, recently, natural gas is popular due to the economy of the operation, protection and energy saving, etc.

6. The furnace can also be specially designed with heavy oil for some countries,such as india and others.

High temperature resistant bogie hearth furnace is mainly used for heat treatment of key pars in various industries, such as cars, rail transportation, aerospace, it is can also be applied to the annealing of Post welding heat treatment (PWHT), castings, forgings etc.





Type No. Rated Power (Kw) Rated Temperature (℃) Theory loading quantity (Kg) Working area size diameter*length (mm)
RT2-45-6 45 650 1000 1100x550x450
RT2-60-6 60 650 1500 1200x700x550
RT2-75-6 75 650 2500 1500x800x600
RT2-90-6 90 650 3000 1800x800x750
RT2-105-6 105 650 4000 2000x900x800
RT2-120-6 120 650 5000 2100x1050x750
RT2-160-6 160 650 5000 2000x1200x1400
RT2-165-6 165 650 5000 2000x1400x920
RT2-180-6 180 650 5000 2000x1400x1600
RT2-210-6 210 650 12000 3000x1350x950
RT2-215-6 215 650 5000 2000x1400x1800
RT2-450-6 450 650 20000 5500x2150x1700
RT2-550-6 550 650 20000 5000x4200x1500
RT2-950-6 950 650 30000 8000x3500x2000
RT2-65-9 65 950 1000 1100x550x450
RT2-90-9 90 950 1500 1500x700x600
RT2-105-9 105 950 2500 10500x800x750
RT2-180-9 180 950 5000 2100x1050x1400
RT2-210-9 210 950 5000 2000x1200x1600
RT2-235-9 235 950 5000 2000x1400x950
RT2-320-9 320 950 12000 3000x1350x1300
RT2-420-9 420 950 15000 4100x1850x1000
RT2-560-9 560 950 25000 10000x1000x2500
RT2-800-9 800 950 30000 5000x4000x450
RT2-120-12 120 1200 2500 1500x800x600
RT2-210-12 210 1200 5000 2100x1050x750
RT2-560-12 560 1200 30000 3200x2000x1500

 Please note:the above sizes are standard products ,we can also provide customized products according to customers' requests.
