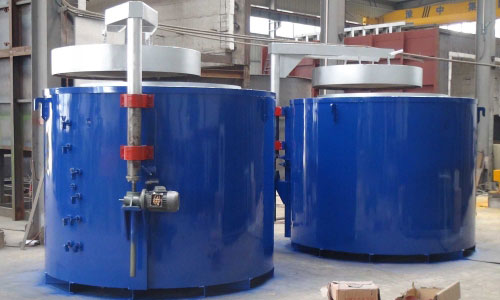

  • Pit annealing furnace industry furnace

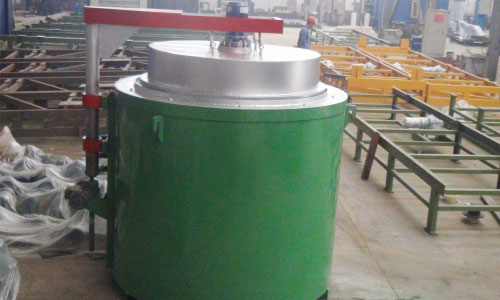

  • pit-annealing-furnace2

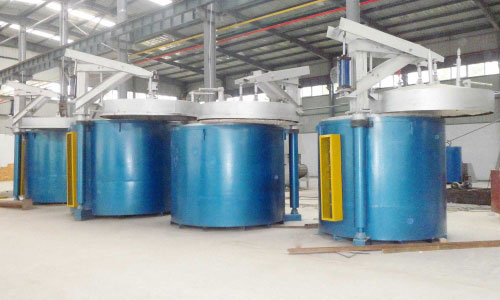

  • Pit annealing furnace shaft parts

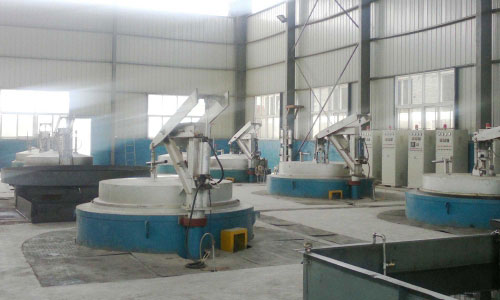

  • Pit annealing furnace tianli furance
  • Pit annealing furnace industry furnace
  • pit-annealing-furnace2
  • Pit annealing furnace shaft parts
  • Pit annealing furnace tianli furance

Pit annealing furnace

  • Processing capacity:300-20000kg
  • Rated temperature:600-700 ℃
  • Application:forging parts, casted parts,pressure vessel,Train railway,special steel plate,shaft,rotary parts,centrifugal fan impeller
[email protected]

1. Introduction

Pit annealing furnace is widely applied in the annealing heat treatment process.

Structures:It consists of furnace shell,furnace lining,heating element,furnace cover,furnace door lifting device,intelligent electronic control system and son on.

2. Features

1).If it is damaged by mechanical collision, it only needs local modification, repairing, replacement, and can be put into application after repaired without heating the empty furnace.

2).The refractory fiber is ceramic fiber block, with good heat preservation effect, fast temperature rising, it can save energy by 20% - 30% compared with brick lining.

3).The service life is long

4).Adopt circulation fan within the furnace to stir the air in the furnace, to strengthen the internal gas flow, effectively increase the furnace temperature uniformity.

5).Seismic resistance performance is good.

6).Good temperature controllability, temperature control precision can be up to ±10 ℃

7).Furnace internal temperature partition piecewise control can be realized.

8).Good corrosion resistance, especially effective for sulfur-containing atmosphere and those that is polluted by sulfur-containing substance.

9).The furnace door lifting adopts hydraulic hoist, electric hoist, to control the opening and closing, with better gas tightness,and now the furnace can be made into round and polygonal, oblong, and other forms according to the requirements of different customers, furnace can load at the same time one or more different containers or artifacts.

Pit annealing furnace is mainly used in annealing treatment for circular castings, all kinds of slender rods, steel wires, automobile spare parts , motorcycle spare parts, standard parts , and so on.

Such furnace can also be made into deep pit furnace according to the actual requests.



Type No. Rated Power (Kw) Rated Temperature (℃) Rated Voltage (V) Phase (P) Connect way of heating element Empty furnace temperature up time(H) Empty furnace consumption power(Kw) Theory loading quantity (Kg) Working area size diameter*length (mm) Heating area (zone)
RJ3-40-9Q 40 950 380 3 Y ≤2.0 ≤8 350 Ø600x800 1
RJ3-65-9Q 65 950 380 3 Y;Y ≤2.0 ≤13 700 Ø600x1600 2
RJ3-75-9Q 75 950 380 3 Y;Y;Y ≤2.0 ≤16 1100 Ø600x2400 3
RJ3-90-9Q 90 950 380 3 Y;Y ≤2.5 ≤20 1500 Ø1000x1200 1
RJ3-95-9Q 95 950 380 3 Y;Y ≤2.5 ≤21 1600 Ø800x2000 2
RJ3-125-9Q 125 950 380 3 Y:Y:Y ≤2.5 ≤30 2400 Ø800x3000 3
RJ3-140-9Q 140 950 380 3 YY:YY ≤3.0 ≤35 3000 Ø1000Xx2400 2
RJ3-190-9Q 190 950 380 3 YY:YY:YY ≤3.0 ≤45 4500 Ø1000x3600 3
RJ3-220-9Q 220 950 380 3 YY:YY:YY ≤4.0 ≤50 5000 Ø1200x3300 3
RJ3-280-9Q 280 950 380 3 YY:YY:YY:YY ≤4.0 ≤56 5500 Ø1200x4500 4
RJ3-300-9Q 300 950 380 3 YY:YY:YY ≤4.5 ≤62 6000 Ø1500x3500 3
RJ3-380-9Q 380 950 380 3 YYY:YYY:YYY ≤5.5 ≤75 7500 Ø1500x4500 3
RJ3-50-12Q 50 1200 380 3 Y ≤3.0 ≤12 350 Ø600x800 1
RJ3-75-12Q 75 1200 380 3 Y;Y ≤3.0 ≤15 700 Ø600x1600 2
RJ3-80-12Q 80 1200 380 3 Y ≤3.0 ≤18 800 Ø800x1000 1
RJ3-105-12Q 105 1200 380 3 YY ≤3.5 ≤22 1500 Ø1000x1200 1
RJ3-110-12Q 110 1200 380 3 Y:Y ≤3.5 ≤24 1600 Ø800x2000 2
RJ3-165-12Q 165 1200 380 3 YY:YY ≤3.5 ≤26 3000 Ø1000x2400 2



















































Please note:the above sizes are standard products ,we can also provide customized products according to customers' requests.
