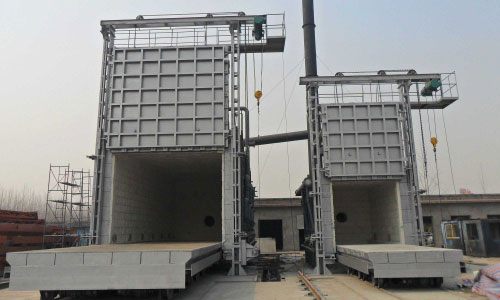

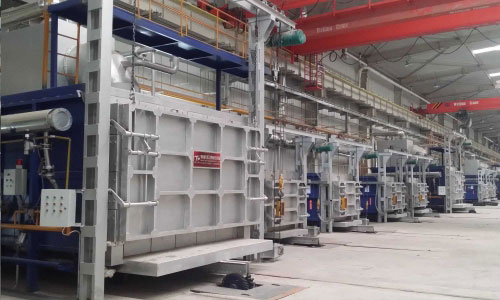

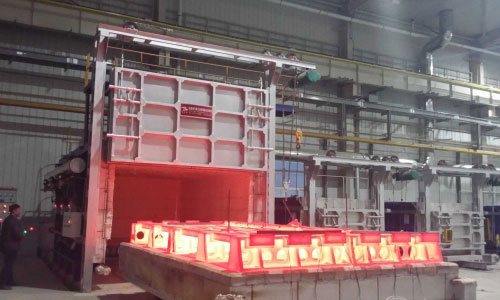

Trolley annealing furnace

  • Processing capacity:1000-150,000kG
  • Rated temperature:900-1250 ℃
  • Application:forging parts, casted parts,pressure vessel,Train railway,special steel plate,shaft,rotary parts,centrifugal fan impeller
[email protected]

1. Introduction

Trolley annealing furnace adopts electricity, natural gas or heavy oil as the fuel to heat the workpieces. The workpieces or materials are carried into and out of the chamber by the trolley, which is controleld by one motor and reducer, this kind of trolley furnace is widely used for annealing during heat treatment process ,after modification .

The trolley annealing furnace that we produces can meet the requirement of various annealing process, the application of human-computer interaction system on the furnace increases the controllability of the annealing process.

For furnace with natural gas ,the application of high speed burner ensures the temperature increases to the best annealing temperature according to the requirements of workpiece heat treatment.

2. Structures

Consists of furnace shell, furnace lining, furnace door and furnace door lifting device, heating element, trolley and trolley driving device, sealing mechanism, electric control system and so on.

3.  Features

1). Adopt natural gas as heat source, improving the economy of the operation, and realizing environmental protection and energy saving, etc.

2). The insulation material is ceramic fiber , which with fast temperature rising, energy saving and so on.

3). Electrical control part is purchased from domestic famous brands, and we can also supply you international famous brands, such as schneider, omron, and Siemens, etc.

4). The sealing between trolley and furnace shell can be fixed sand sealing, flexible sand sealing, moved sand sealing, Labyrinth sealing, Motor-driven push-rod type sealing, and Cylinder pressure tight sealing and so on.

5). The furnace zones quantity, burner quantity and location designed reasonable to ensure temperature uniformity.

6). Burning system consists of imported components, pulse burning control.

7). Using high efficient heat exchanger, with high waste heat utilization rate, low energy consumption.

8). Furnace pressure is automatically controlled, to ensure the furnace with good temperature uniformity, and small gas consumption.

9). The furnace can also be specially designed with heavy oil for some countries,such as india and others.

Trolley annealing furnace aims to annealing heat treatment for large castings, welding parts,steel structural workpieces,forgings and so on.

And especially post welding heat treatment(PWHT) for pressure vessel or container .



Type No. Rated Power (Kw) Rated Temperature (℃) Theory loading quantity (Kg) Working area size diameter*length (mm) HEATING



ZONE

RT2-65-9 65 950 1000 1100x550x450 1
RT2-180-9 180 950 5000 2100x1050x1400 2
RT2-560-9 560 950 25000 10000x1000x2500 4
RT2-800-9 800 950 30000 5000x4000x450 4
RT2-81-12 81 1200 1000 1100x550x600 1
RT2-210-12 210 1200 5000 2100x1050x750 2
RT2-560-12 560 1200 30000 3200x2000x1500 3

Please note:the above sizes are standard products ,we can also provide customized products according to customers' requests.
