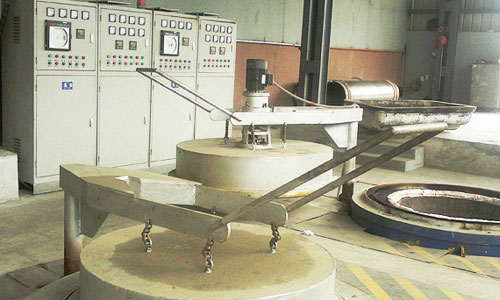

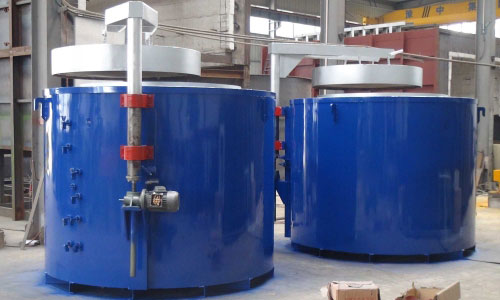

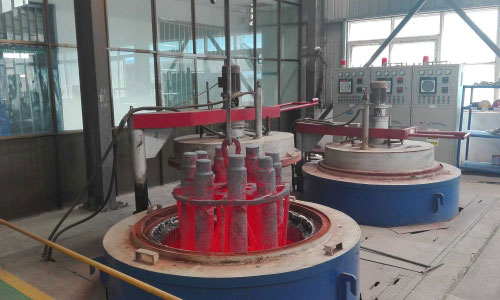

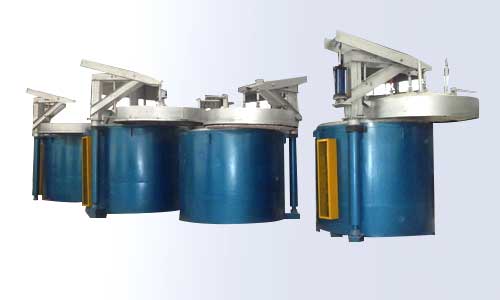

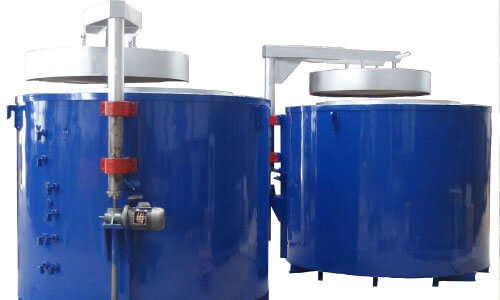

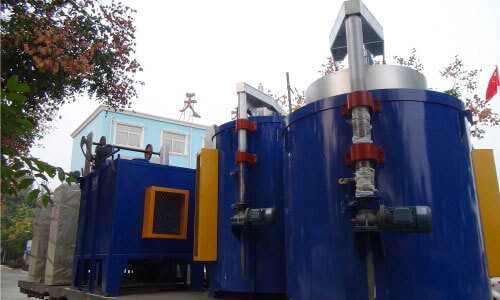

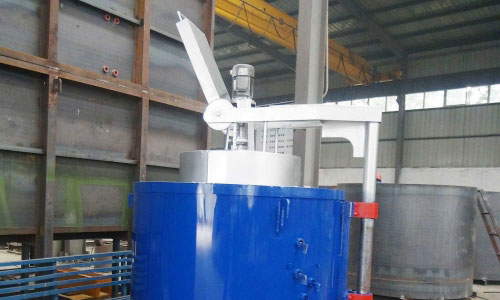

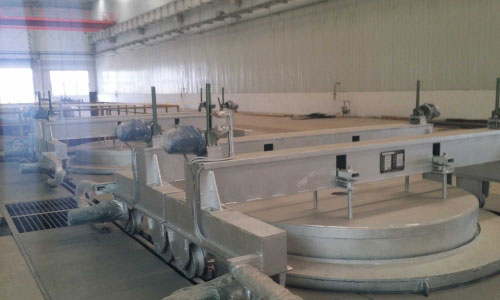

Pit normalizing furnace

  • Processing capacity:300-20000kg
  • Rated temperature:700-950 ℃
  • Application:forging parts, casted parts,pressure vessel,Train railway,special steel plate,shaft,rotary parts,centrifugal fan impeller
[email protected]

1. Introduction

Pit normalizing furnace belongs to the cycle operation deep well furnace, mainly used for normalizing treatment of long shaft parts, such as the piston rod, the steam turbine main shaft, generator rotor, ship diesel engine spindle artifacts and so on .

Structure:It consists of furnace shell,furnace lining,heating element,furnace cover,furnace lifting device,intelligent electronic control system and son on.

2. Features

1).The refractory fiber is ceramic fiber block, with good heat preservation effect, fast temperature rising, it can save energy by 20% - 30% compared with brick lining.

2).The heat storage of the fibered furnace is small, with higher response speed when regulating regional temperature compared with brick furnace, and when breakdown, cooling speed is fast, faults can be solved within short time.

3).Convenient maintenance

4).Light weight

5).Adopt circulation fan within the furnace to stir the air in the furnace, to strengthen the internal gas flow, effectively increase the furnace temperature uniformity.

6).The heating element is heating Using iron chromium electrothermal alloy, its temperature can reach 1400 ℃,with small proportion, and high resistivity .

7).Electrical control part is purchased from domestic famous brands, if they cannot meet your requirements, we can also supply you international famous brands, such as schneider, omron, and Siemens, etc.

Pit normalizing furnace mainly applied to forging process,and undercertain occasions,it can replace the annealing furnace, for some large parts or accessories with complex shape, when cracks happen during quenching , normalizing often can replace quenching and tempering treatment, and regarded as the final heat treatment.



Type No. Rated Power  (Kw) Rated Temperature (℃) Rated Voltage (V) Phase   (P) Connect way of heating element Empty furnace temperature up time(H) Empty furnace consumption power(Kw) Theory loading quantity (Kg) Working area size diameter*length (mm) Heating area (zone)
RJ3-40-9Q 40 950 380 3 Y ≤2.0 ≤8 350 Ø600x800 1
RJ3-65-9Q 65 950 380 3 Y;Y ≤2.0 ≤13 700 Ø600x1600 2
RJ3-75-9Q 75 950 380 3 Y;Y;Y ≤2.0 ≤16 1100 Ø600x2400 3
RJ3-90-9Q 90 950 380 3 Y;Y ≤2.5 ≤20 1500 Ø1000x1200 1
RJ3-95-9Q 95 950 380 3 Y;Y ≤2.5 ≤21 1600 Ø800x2000 2
RJ3-125-9Q 125 950 380 3 Y:Y:Y ≤2.5 ≤30 2400 Ø800x3000 3
RJ3-140-9Q 140 950 380 3 YY:YY ≤3.0 ≤35 3000 Ø1000Xx2400 2
RJ3-190-9Q 190 950 380 3 YY:YY:YY ≤3.0 ≤45 4500 Ø1000x3600 3
RJ3-220-9Q 220 950 380 3 YY:YY:YY ≤4.0 ≤50 5000 Ø1200x3300 3
RJ3-280-9Q 280 950 380 3 YY:YY:YY:YY ≤4.0 ≤56 5500 Ø1200x4500 4
RJ3-300-9Q 300 950 380 3 YY:YY:YY ≤4.5 ≤62 6000 Ø1500x3500 3
RJ3-380-9Q 380 950 380 3 YYY:YYY:YYY ≤5.5 ≤75 7500 Ø1500x4500 3
RJ3-50-12Q 50 1200 380 3 Y ≤3.0 ≤12 350 Ø600x800 1
RJ3-75-12Q 75 1200 380 3 Y;Y ≤3.0 ≤15 700 Ø600x1600 2
RJ3-80-12Q 80 1200 380 3 Y ≤3.0 ≤18 800 Ø800x1000 1
RJ3-105-12Q 105 1200 380 3 YY ≤3.5 ≤22 1500 Ø1000x1200 1
RJ3-110-12Q 110 1200 380 3 Y:Y ≤3.5 ≤24 1600 Ø800x2000 2
RJ3-165-12Q 165 1200 380 3 YY:YY ≤3.5 ≤26 3000 Ø1000x2400 2

Please note:the above sizes are standard products ,we can also provide customized products according to customers' requests.
